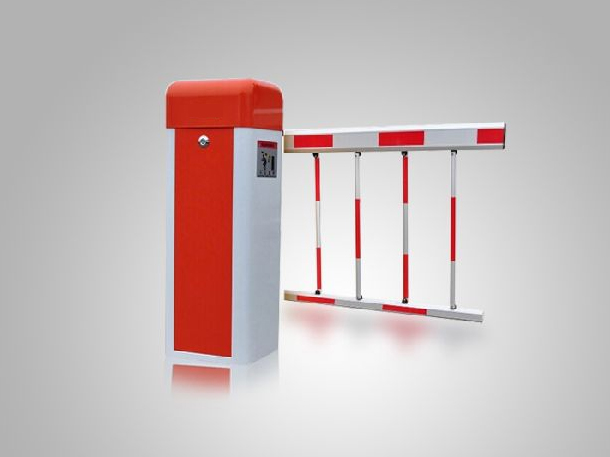

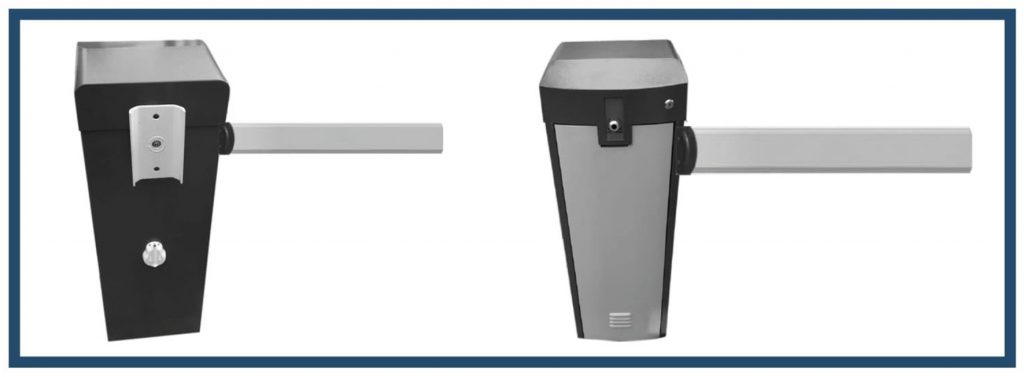

Boom Barrier

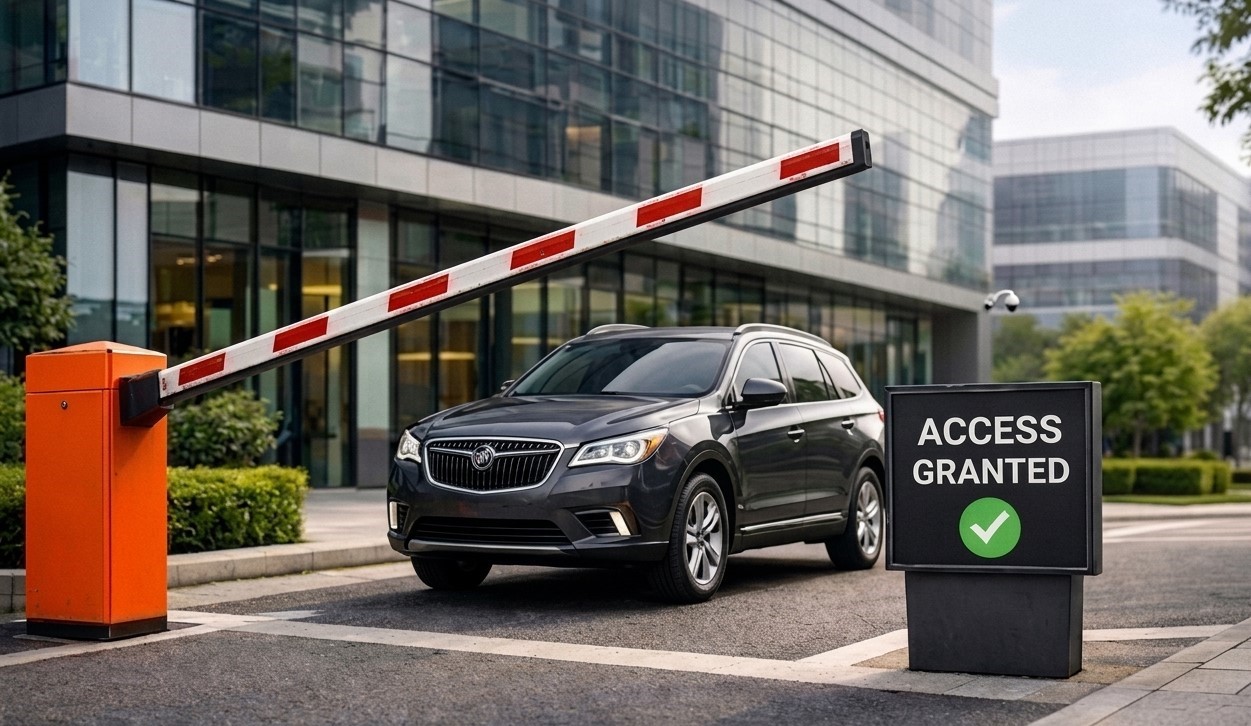

Atronics boom barriers, also known as boom gates, are advanced vehicle access control systems designed to regulate and secure entry and exit points. A boom barrier consists of a horizontal bar or pole that pivots to block or allow vehicle movement. The boom arm typically rises in a vertical arc and is spring-balanced for smooth and efficient operation.
Our electro-mechanical boom barriers are built for continuous and intensive duty cycles, making them ideal for high-traffic environments such as factories, office complexes, residential communities, parking lots, toll plazas, and road entry points.
These automatic boom barriers combine modern aesthetics with high performance, offering features like an anti-crush safety mechanism that stops the boom if an obstruction is detected and an optional beam sensor for enhanced vehicle protection. The auto-close function can be programmed via the controller, while adjustable speed settings (fast and slow) ensure optimal performance based on boom length and traffic frequency.
Designed for 24/7 operation, Atronics boom barriers provide a cost-effective, low-maintenance, and reliable traffic management solution. They can be seamlessly integrated with RFID, ANPR, and other access control systems, ensuring efficient and secure vehicle flow at all times.

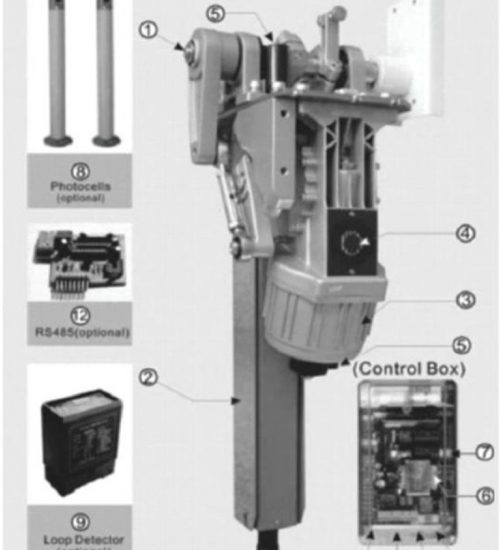

- Manual Release
- Machine core with compression spring, effectively avoids
- Die-casting aluminum alloy motor, precision and good at thermal radiating
- Motor cooling fan, solving the problem of heat-protection
- Double safety limit switches (photoelectricity limit switch/motor memory sensor )
- Reversing on obstacle
- Auto-closing
- Support the INFRARER PHTOCELL for anti-bumping function (optional)
- Support the external and internal VEHICLE LOOP DETECTOR (optional)
- Traffic light interface
- Wire control (switch signal)/ Remote control (418MHZ)
- RS485 communication module (optional)
24 Hours
Of High Security
Weather
Proof
Elegant
design
Prevents
Unauthorized Entry
Optimization
in Entrance
User
Friendly
Applications
Airports
Commercial
Spaces
Stadium
Metro
Railway Station
Office
Premises
Warehouse
Data
Center
Government
Offices
DATA SHEET
Technical Specification
| MODEL | S-45 |
|---|---|
| Boom Type | Straight, Folded |
| Running Time | 3 Sec |
| Max Boom Length | 4 Meters |
| Boom Dimension | 45*100 MM |
| Boom Weight | 4 KG |
| Motor Torque | 300 NM |
| Duty Cycle | 100% |
| Voltage | 220V -/+ 10%, 110 -/+ 10% |
| Frequency | 50/60 HZ |
| Motor Voltage | 220 V |
| Power | 100 W |
| Working Temperature | 0 C to 65 C |
| Protection Grade | IP 54 |
| Weight (Housing) | 60KG |
| Dimension(Housing) | 105*40*50 CM |
| Accessories (Optional) | Remote Device, Push Button, Loop Detector, Photocellsensors |

Components

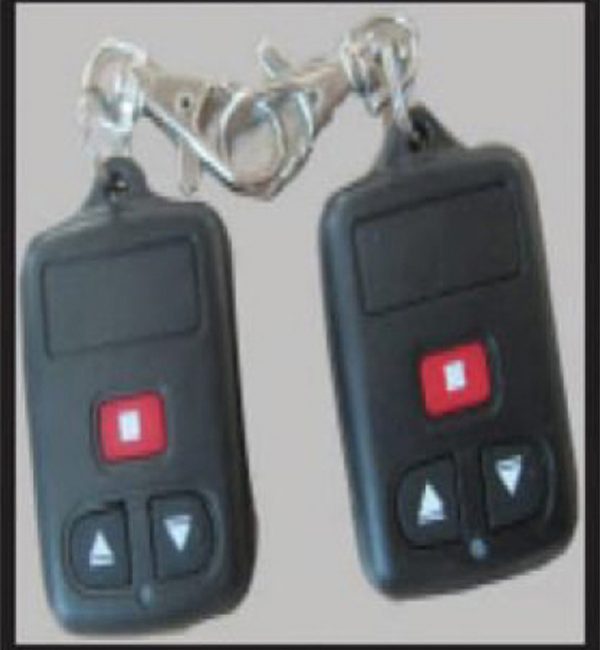

Remote Emitter

Remote Controller

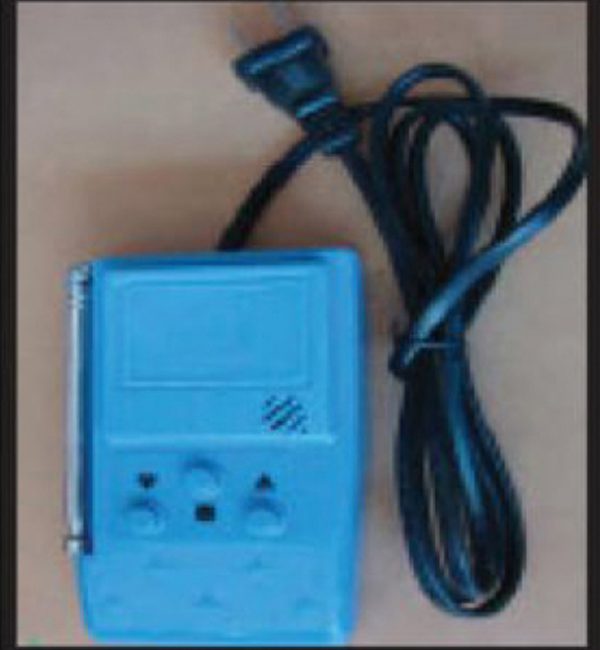

Radio Receiver

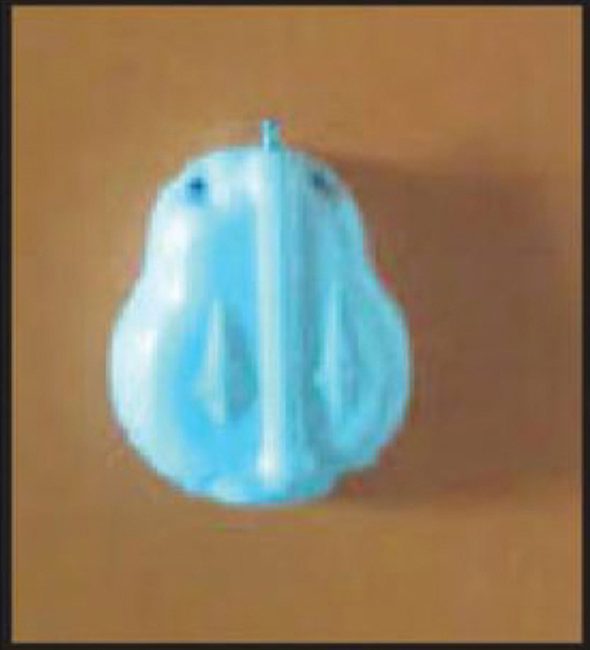

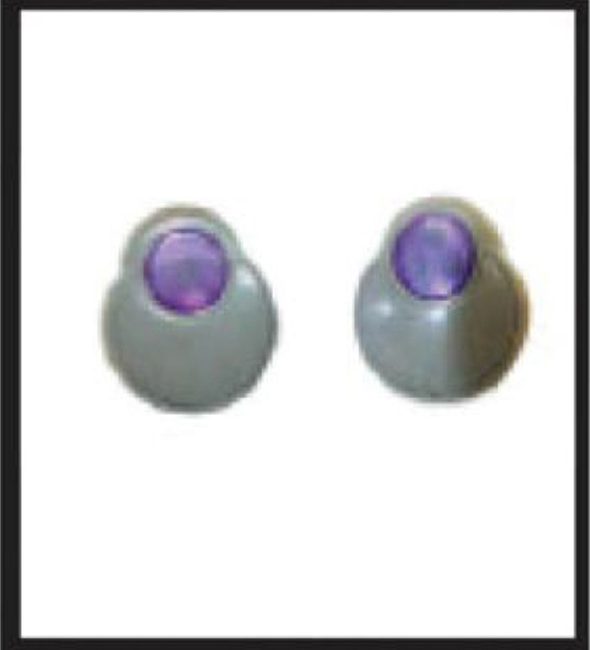

Infrared Photocell
