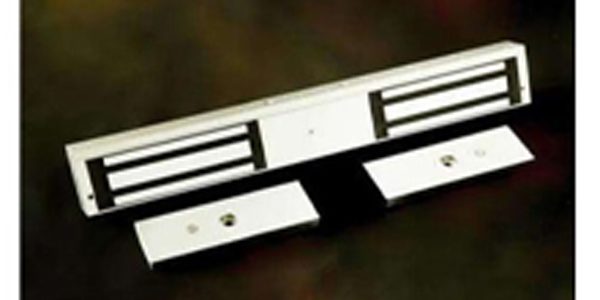

Double Electromagnetic Lock
12001bs EM Locks were designed to meet fire/life safety applications by providing an auxiliary locking mechanism that has no moving parts to bind or wear out for trouble free operation. This will ensure inhibited released at all times where they have become extremely prevalent in applications other than fire/life safety. Suitable for access controlled & secure areas within buildings with double leaf doors.
| Features & Spec. | UL545-D-A | UL545-DL-A |
|---|---|---|
| Lock Status Monitoring | - | ✓ |
| Holding Force | Up to 1200lbs x 2 | Up to 1200lbs x 2 |
| Magnet Size | 532 x 67 x 40 mm | 532 x 67 x 40 mm |
| Armature Size | 185 x 61 x 16.5 mm | 185 x 61 x 16.5 mm |
| Current Drain | 420mA±10%/12Vdc 210mA±10%/24Vdc | 420mA±10%/12Vdc 210mA±10%/24Vdc |
| Operating Temperature | (-10 to 55)°C (14 to 131)°F | (-10 to 55)°C (14 to 131)°F |
| Housing Finishing | Anodized Aluminium | Anodized Aluminium |
| Est. Weight | 9.3kg | 9.3kg |
Life Safety
Applications
Zero Residual
Magnetism
Low Energy
Consumption
Cost
Savings

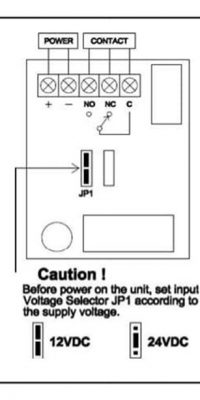

12/24V
Selectable
Ideal For
All Door Types
Explode View

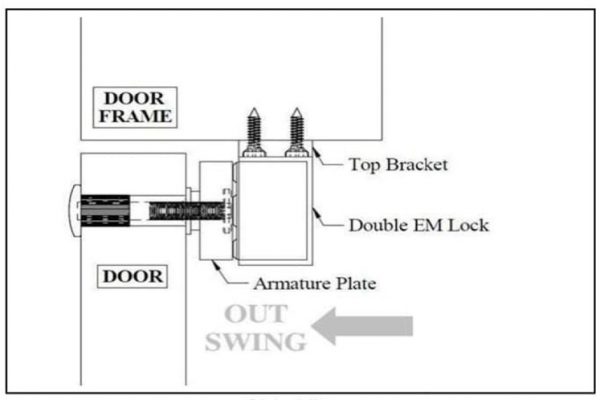

Side View
