Exit Button
Exit Button is designed to provide a reliable means of ingress/egress for access controlled openings in commercial and industrial facilities. The heavy duty stainless steel faceplate is designed to mount, depending on the model, into a single gang or narrow jamb electrical box
Features & Specification
No Power Required
to Operate
Vandal
Resistant
Stainless Steel
Faceplate

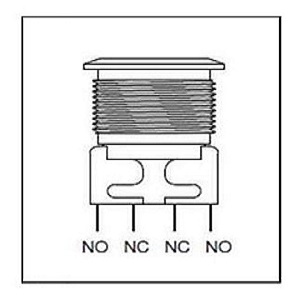

N.O. & N.C.
Output
| Feature and specs. | EBP-S01A |
|---|---|
| Material | Stainless steel |
| Momentary | Double Pole Double Throw |
| Max Rating | 5A,125/250VAC |
| Operating life | Over1000000 Times |
| Operating Travel | 2.7mm |
| Dimension | 84.5×39.5mm |
| weight | 0.1kg |
