Swing Barrier

Atronics ensures efficient, reliable products and services that meet the world class quality standards. These CE certified barriers are ensuring only authorized users are allowed access to each area of application. Quick swing motion of the door wings and the integrated authorization memory enables the speed lane to maintain a high capacity rollout of 35 people per minute.

Both models S-306 & S-306/2 Swing barriers are work in similar fashion to suit the surrounding. Dual lane operation for independent passage entry to secure the passage where the high volume of people passing through.

  • Housing is of splash proof SS 304; flaps are specially designed of acrylic sheets which provide good aesthetics and much strength.
  • Sleek and magnificent design used to control the pedestrian flow smoothly.
  • Durability with minimal maintenance means years and millions of trouble free passages.
  • The barrier gate can be set to delay closing in 1 – 60 sec after a valid card closing.
  • Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping. When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get bac k automatically, also it will alarm.
  • Anti-tailgating- it allows only one person to pass for an authorized card presented.
  • Arrows for direction indication are provided at the top for easy access.
  • Access prompt function- Red and green light prompt the passing information.
  • Anti – panic – when power off, the barrier will open for people to go through.
  • With in – built sensors crawling can be avoided.

24 Hours
Of High Security

Weather
Proof

Elegant
Design

Prevents
Unauthorized Entry

Optimization
In Entrance

User
Friendly

Technical Features

100-240 Vac 50 Hz
Power Supply

Two Way
Passage Direction

Temperature
Range

35 Person/Min
Transaction Rate

Protection
Rating

Power
Consumption

Anti Tailgating Only
One Person to Pass at Time

Unlock
Time

DATA SHEET

Swing Barrier S-306

4
6

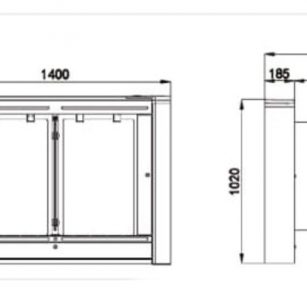

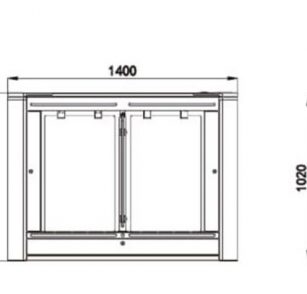

Size: 1400(L) x 185(W) x 1020(H)mm
Pass width: < 600mm

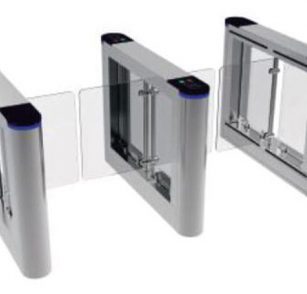

Swing Barrier S-306/2

5
7

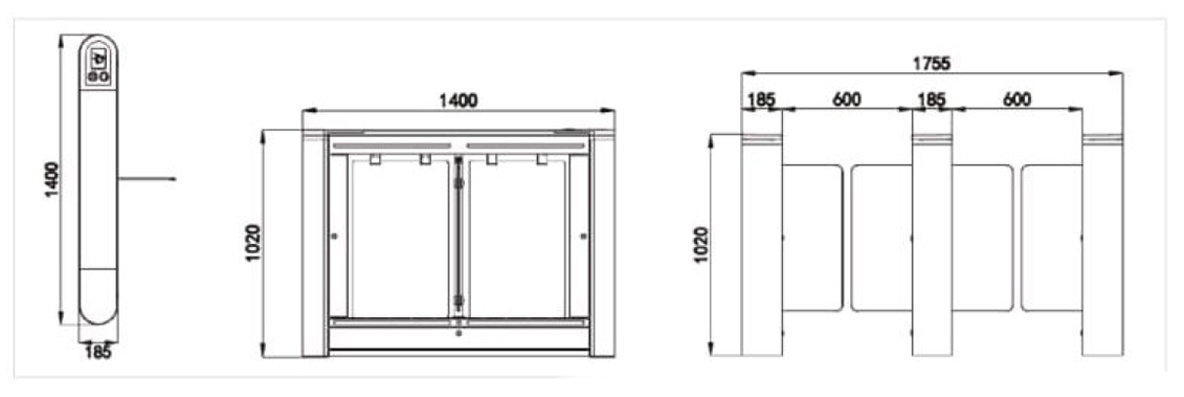

Size: 1400(L) x 185(W) x 1020(H)mm
Pass width: < 600mm
